Precision Grinding Plates
Flatness and parallelism controlled down to ±0.005 mm within approximately 1,000–1,200 mm working ranges.
Machining Capability
Precision plates and deep-hole machining for demanding tooling programs.
Our integrated manufacturing resources support large-format mold plates, precision grinding, deep-hole drilling and in-house mold-base components based on approved drawings and specifications.
Large-Format Plate Machining
Plate sizes up to 2,000 × 1,500 mm with positioning and dimensional tolerances within ±0.005 mm.
Deep-Hole Drilling
Hole diameters from Ø3 to Ø55 mm and drilling depths up to 1,500 mm, with maximum deviation of ±0.5 mm per 1,000 mm.
In-House Mold Components
Guide pillars, guide bushings, locating rings, support components, spacers and other standard mold-base components produced under one quality system.
03 / Core Capability
Precision Components
Complex, high-accuracy mold and industrial components manufactured in a dedicated temperature-controlled workshop.
Request Component Quote →
Dedicated Workshop
A controlled environment for precision-critical work.
Commissioned in 2025, CF-STiEHL's dedicated precision component workshop combines advanced machining, grinding, EDM and inspection equipment from Japan, Germany and Switzerland.
24Dedicated Machines
2025Workshop Launched
3Equipment Origins
Component Capabilities
From complex geometry to inspected precision.
Project-specific manufacturing and inspection planning based on drawing, material, tolerance and application requirements.

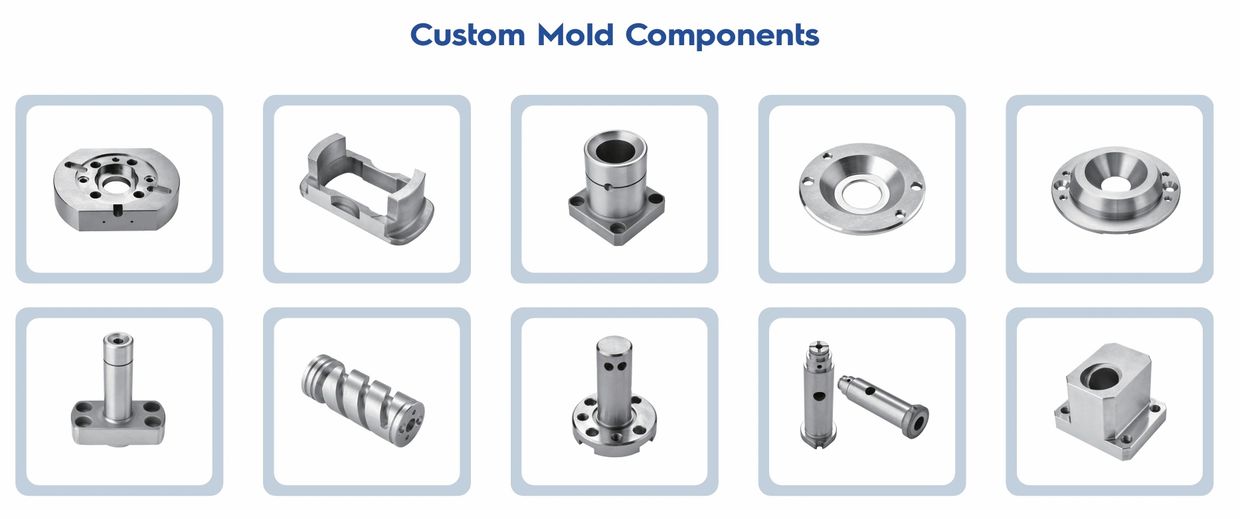

Mold Components
Cores, inserts, sleeves, pins, cavities, wear components and custom mold parts.
Precision Plates
High-accuracy plates and drawing-based components for mold, tooling and industrial assemblies.
Standard Components
Customer-specified standard components manufactured, sourced or integrated into mold base projects.
Complex Components
Low-volume, precision-critical and geometrically complex components manufactured to approved drawings.
Integrated Processes
Manufacturing and inspection under one system.
CNC MachiningPrecision three-axis and five-axis machining for complex component geometry.
GrindingCylindrical, jig and surface grinding for critical dimensions and finishes.
EDMWire EDM and sinker EDM for fine details, slots and complex profiles.
InspectionZEISS CMM inspection and project-specific inspection planning and documentation.
YASDARÖDERSSTUDERAMADAZIERSCHGFZEISS
